22kW Type 2 To GB/T Adapter
  • 22kW Type 2 To GB/T Adapter22kW Type 2 To GB/T Adapter
  • 22kW Type 2 To GB/T Adapter22kW Type 2 To GB/T Adapter
  • 22kW Type 2 To GB/T Adapter22kW Type 2 To GB/T Adapter
  • 22kW Type 2 To GB/T Adapter22kW Type 2 To GB/T Adapter
  • 22kW Type 2 To GB/T Adapter22kW Type 2 To GB/T Adapter

22kW Type 2 To GB/T Adapter

LIACC is a professional manufacturer of EV Charging Accessories. Can design and manufacture the adapters according to the customer's needs by ourselves, which meet China (GB) /EU(CE) standards. And LIACC can provide better OEM services for EV accessories purchaser all over the world for having a factory that we can lower cost efficiently and lift our producing quality better.

Send Inquiry

Product Description

LIACC 22kW Type 2 To GB/T adapter

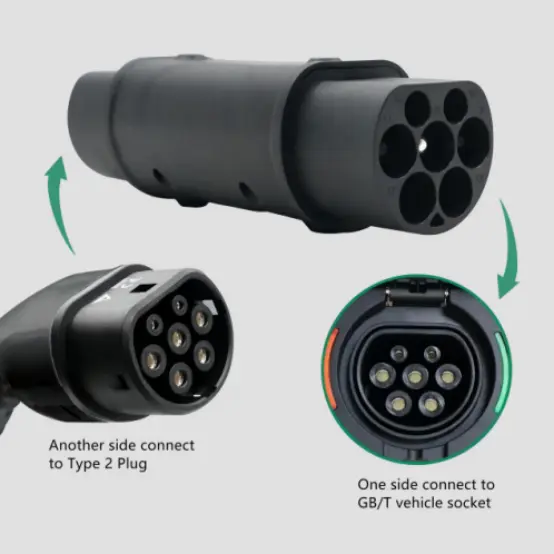

The adapter acts as a unifying solution, allowing EV owners with GB/T equipped vehicles to seamlessly connect and charge at Type 2 AC EV charger.  This is especially valuable for international travelers or businesses operating in multiple regions, eliminating the need for separate charging equipment.

 Warranty : 1 years.



Specification :

Product Model

EVA-T2-G-332

Adapter

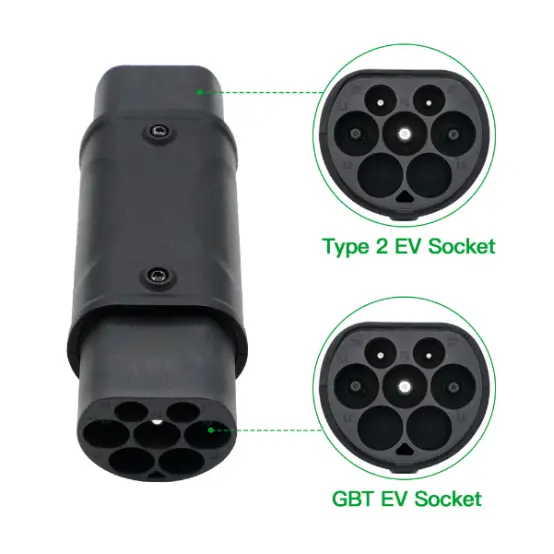

Type 2 To GBT (IEC 62196 To GB/T)

Color

Black

Rated Current

32A

Rated Voltage

AC 400V three phase

Charging Power

22KW

Mechanical life

unload plug & off >10000 times

Working Temperature

-30~65

Insulation Resistance

>1000MΩ

Connector Pin

Copper Alloy, Silver Plating

Contact Resistance

0.5MΩ MAX

Protection  Class

IP54

Shell Material

Thermoplastic (flame retardant rating V-0)
